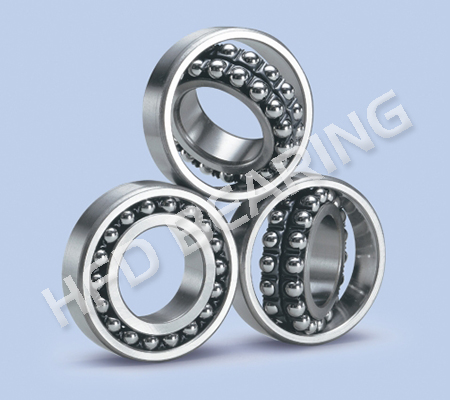

Aligning Ball Bearing
Introduction
| Bearing | Dimensions | Weight | Bearing | Dimensions | Weight | ||||
| Number | （mm） | (g) | Number | （mm） | (g) | ||||
| d | D | T | d | D | T | ||||
| 1200(K) | 10 | 30 | 9 | 0.035 | 1300(K) | 10 | 35 | 11 | 0.060 |
| 1201(K) | 12 | 32 | 10 | 0.042 | 1301(K) | 12 | 37 | 12 | 0.070 |
| 1202(K) | 15 | 35 | 11 | 0.051 | 1302(K) | 15 | 42 | 13 | 0.099 |
| 1203(K) | 17 | 40 | 12 | 0.076 | 1303(K) | 17 | 47 | 14 | 0.138 |
| 1204(K) | 20 | 47 | 14 | 0.119 | 1304(K) | 20 | 52 | 15 | 0.174 |
| 1205(K) | 25 | 52 | 15 | 0.144 | 1305(K) | 25 | 62 | 17 | 0.258 |
| 1206(K) | 30 | 62 | 16 | 0.226 | 1306(K) | 30 | 72 | 19 | 0.389 |
| 1207(K) | 35 | 72 | 17 | 0.318 | 1307(K) | 35 | 80 | 21 | 0.537 |
| 1208(K) | 40 | 80 | 18 | 0.411 | 1308(K) | 40 | 90 | 23 | 0.706 |
| 1209(K) | 45 | 85 | 19 | 0.489 | 1309(K) | 45 | 100 | 25 | 0.962 |
| 1210(K) | 50 | 90 | 20 | 0.545 | 1310(K) | 50 | 110 | 27 | 1.210 |
| 1211(K) | 55 | 100 | 21 | 0.722 | 1311(K) | 55 | 120 | 29 | 1.580 |
| 1212(K) | 60 | 110 | 22 | 0.896 | 1312(K) | 60 | 130 | 31 | 1.960 |
| 1213(K) | 65 | 120 | 23 | 0.915 | 1313(K) | 65 | 140 | 33 | 2.340 |
| 1214(K) | 70 | 125 | 24 | 1.290 | 1314(K) | 70 | 150 | 35 | 2.980 |
| 1215(K) | 75 | 130 | 25 | 1.350 | 1315(K) | 75 | 160 | 37 | 3.550 |
| 1216(K) | 80 | 140 | 26 | 1.600 | 1316(K) | 80 | 170 | 39 | 4.190 |
| 1217(K) | 85 | 150 | 28 | 2.100 | 1317(K) | 85 | 180 | 41 | 4.950 |
| 1218(K) | 90 | 160 | 30 | 2.440 | 1318(K) | 90 | 190 | 43 | 5.990 |
| 1219(K) | 95 | 170 | 32 | 3.060 | 1319(K) | 95 | 200 | 45 | 6.980 |
| 1220(K) | 100 | 180 | 34 | 3.690 | 1320(K) | 100 | 215 | 52 | 8.640 |
| 2200 | 10 | 30 | 14 | 0.047 | 2300 | 10 | 35 | 17 | 0, .080 |
| 2201 | 12 | 32 | 14 | 0.053 | 2301 | 12 | 37 | 17 | 0.095 |
| 2202(K) | 15 | 35 | 14 | 0.060 | 2302 | 15 | 42 | 17 | 0.110 |
| 2203(K) | 17 | 40 | 16 | 0.088 | 2303 | 17 | 47 | 19 | 0.160 |
| 2204(K) | 20 | 47 | 18 | 0.152 | 2304(K) | 20 | 52 | 21 | 0.219 |
| 2205(K) | 25 | 52 | 18 | 0.187 | 2305(K) | 25 | 62 | 24 | 0.355 |
| 2206(K) | 30 | 62 | 20 | 0.260 | 2306(K) | 30 | 72 | 27 | 0.515 |
| 2207(K) | 35 | 72 | 23 | 0.441 | 2307(K) | 35 | 80 | 31 | 0.675 |
| 2208(K) | 40 | 80 | 23 | 0.530 | 2308(K) | 40 | 90 | 33 | 0.959 |
| 2209(K) | 45 | 85 | 23 | 0.553 | 2309(K) | 45 | 100 | 36 | 1.250 |
| 2210(K) | 50 | 90 | 23 | 0.618 | 2310(K) | 50 | 110 | 40 | 1.660 |
| 2211(K) | 55 | 100 | 25 | 0.824 | 2311(K) | 55 | 120 | 46 | 2.090 |
| 2212(K) | 60 | 110 | 28 | 1.160 | 2312(K) | 60 | 130 | 46 | 2.610 |
| 2213(K) | 65 | 120 | 31 | 1.500 | 2313(K) | 65 | 140 | 48 | 3.220 |
| 2214(K) | 70 | 125 | 31 | 1.630 | 2314(K) | 70 | 150 | 51 | 3.920 |
| 2215(K) | 75 | 130 | 31 | 1.710 | 2315(K) | 75 | 160 | 55 | 4.710 |
| 2216(K) | 80 | 140 | 33 | 2.190 | 2316(K) | 80 | 170 | 58 | 5.700 |
| 2217(K) | 85 | 150 | 36 | 2.530 | 2317(K) | 85 | 180 | 60 | 6.730 |
| 2218(K) | 90 | 160 | 40 | 3.220 | 2318(K) | 90 | 190 | 64 | 8.270 |
| 2219(K) | 95 | 170 | 43 | 4.200 | 2319(K) | 95 | 200 | 67 | 10.500 |
| 2220(K) | 100 | 180 | 46 | 4.950 | 2320(K) | 100 | 215 | 73 | 12.400 |
